Blood Magic Attack

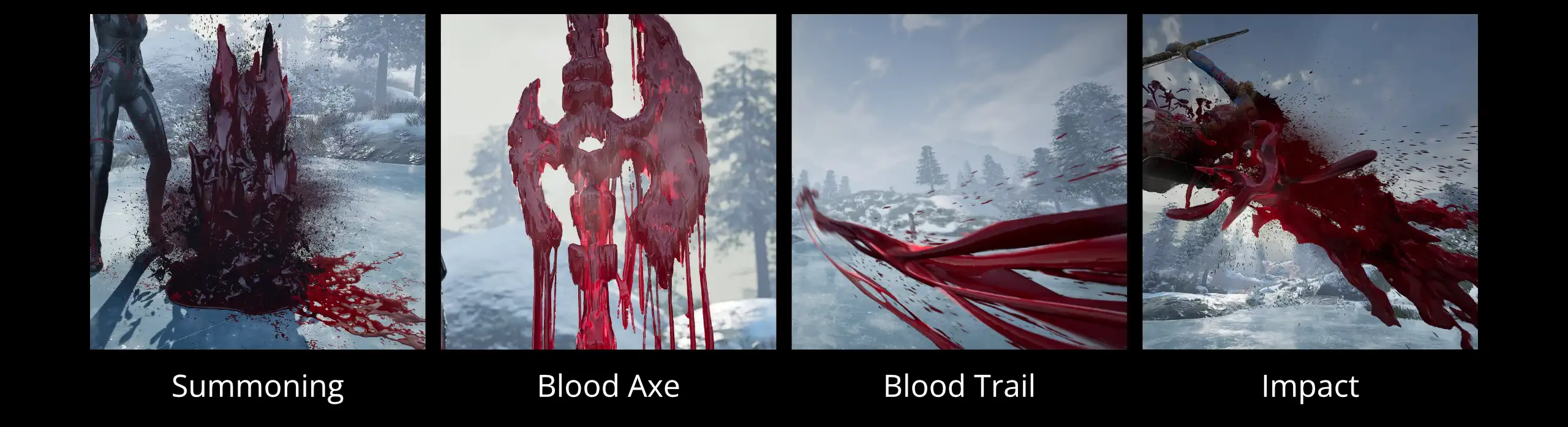

Blood Magic Attack is a cinematic-ready real-time VFX. I took this project as a chance to practice different ways to represent liquid effects inside a game engine: sprites, 2D flipbooks, mesh flipbooks, and VATs. Then, I used the methods I found most fitting to complete the effects. There are four main parts to this effect:

Summoning

For this effect, a witch summons a Blood Axe with a large splash of blood. This is the process I followed:

１．I made animated meshes in Houdini to use as emitters in Liquigen
２．I made liquid simulations in Liquigen
３．I exported them in various formats: sprites, flipbooks, and meshes
４．I did the post-processing of the assets in Substance Designer or Houdini
５．I put them together in Unreal

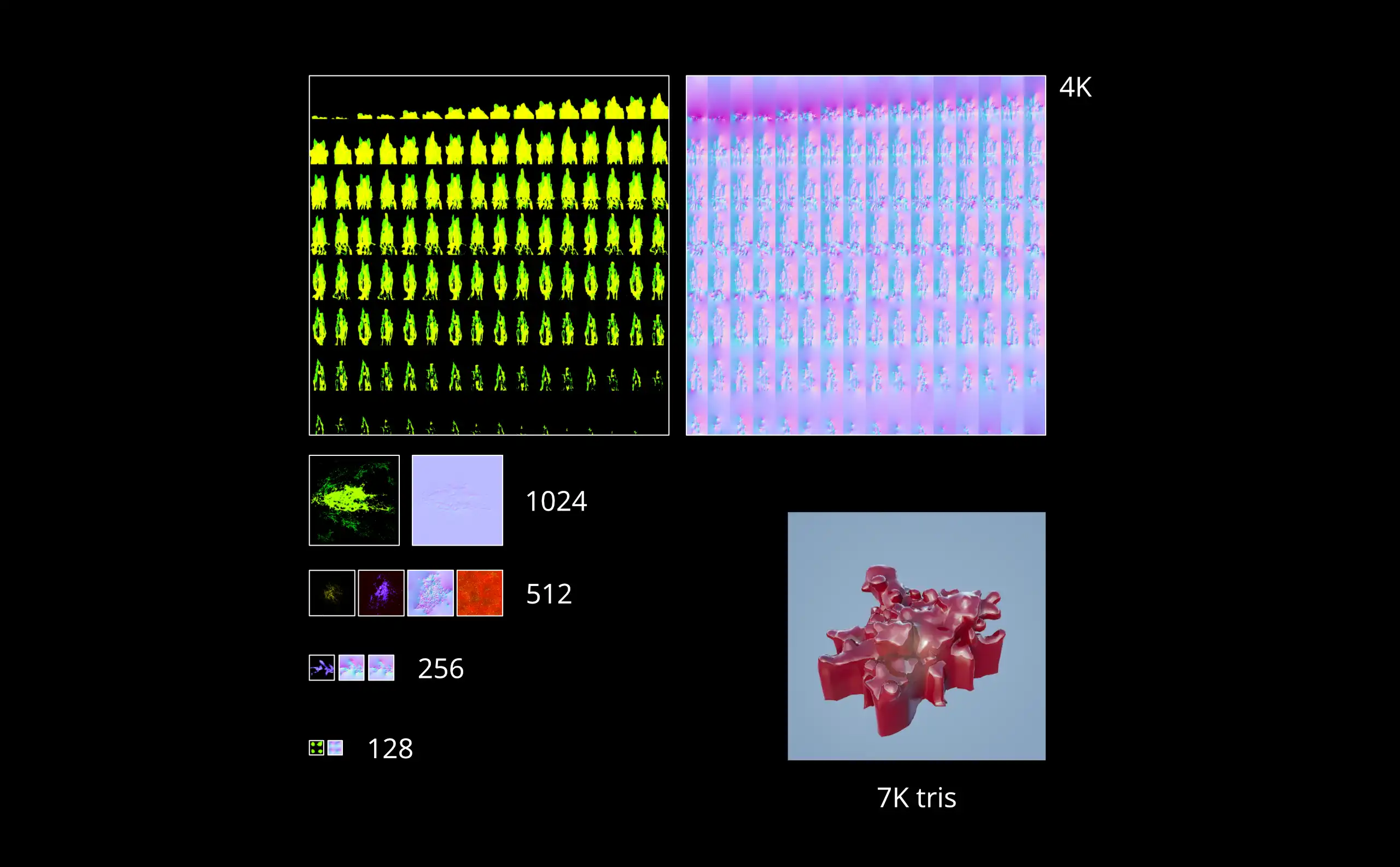

I mixed 2D and 3D assets to achieve a convincing three-dimensional appearance while keeping good performance. Below, you can see all the assets I used for the Summoning part of the effect:

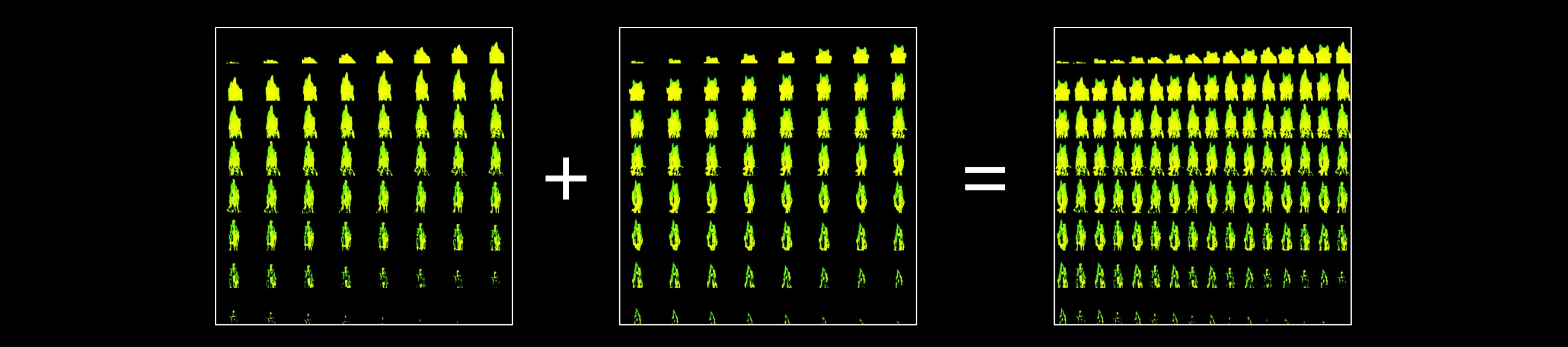

As you can see, there's only two 4K textures used for this effect. One of the critical points in saving performance was joining the two main flipbooks into one, adding variety while keeping the effect optimized.

To add more body to the effect, I mixed in a mesh. It is a regular mesh, not a VAT or mesh flipbook. I animated the vertices using a power of their local position to achieve some motion. Using Houdini, I wrote a thickness value into the vertex colors to use for subsurface shading.

Blood Axe

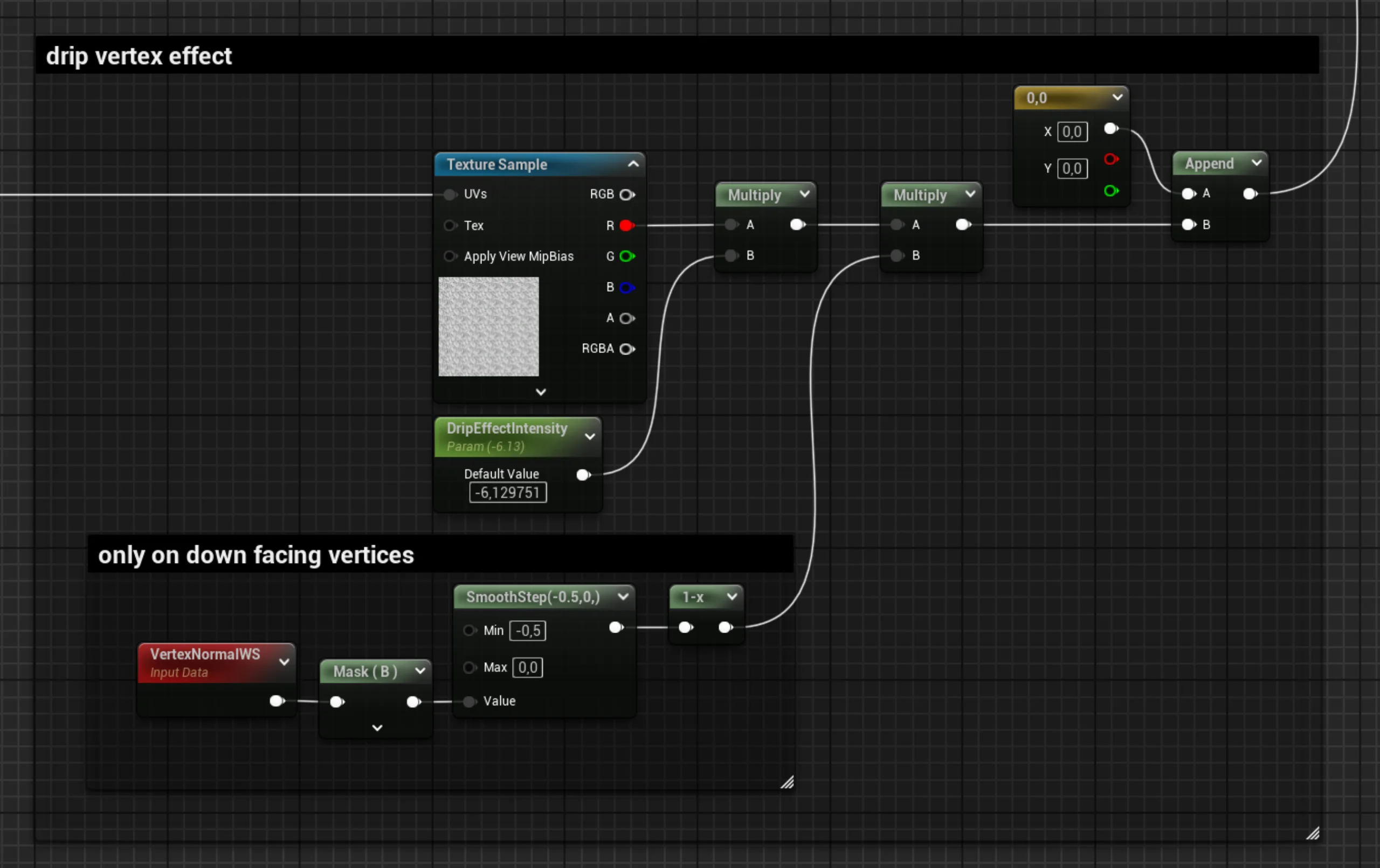

I made this effect by applying a custom shader to an axe model. In the shader, I use vertex displacement, panning normals, and subsurface to achieve the viscous, liquid appearance. As for the vertex displacement, I mask the down-facing vertices and apply a downward displacement using a panning voronoi noise. As for the panning normals, they are applied with UV distortion as well. As for the subsurface, I adapted and repurposed the metallic texture made by the original artist of the axe asset.

On top of the shader I added a Niagara system for the dripping. Similarly to what I did for the Summoning splash, I joined four different flipbooks into one to add variety while keeping good performance.

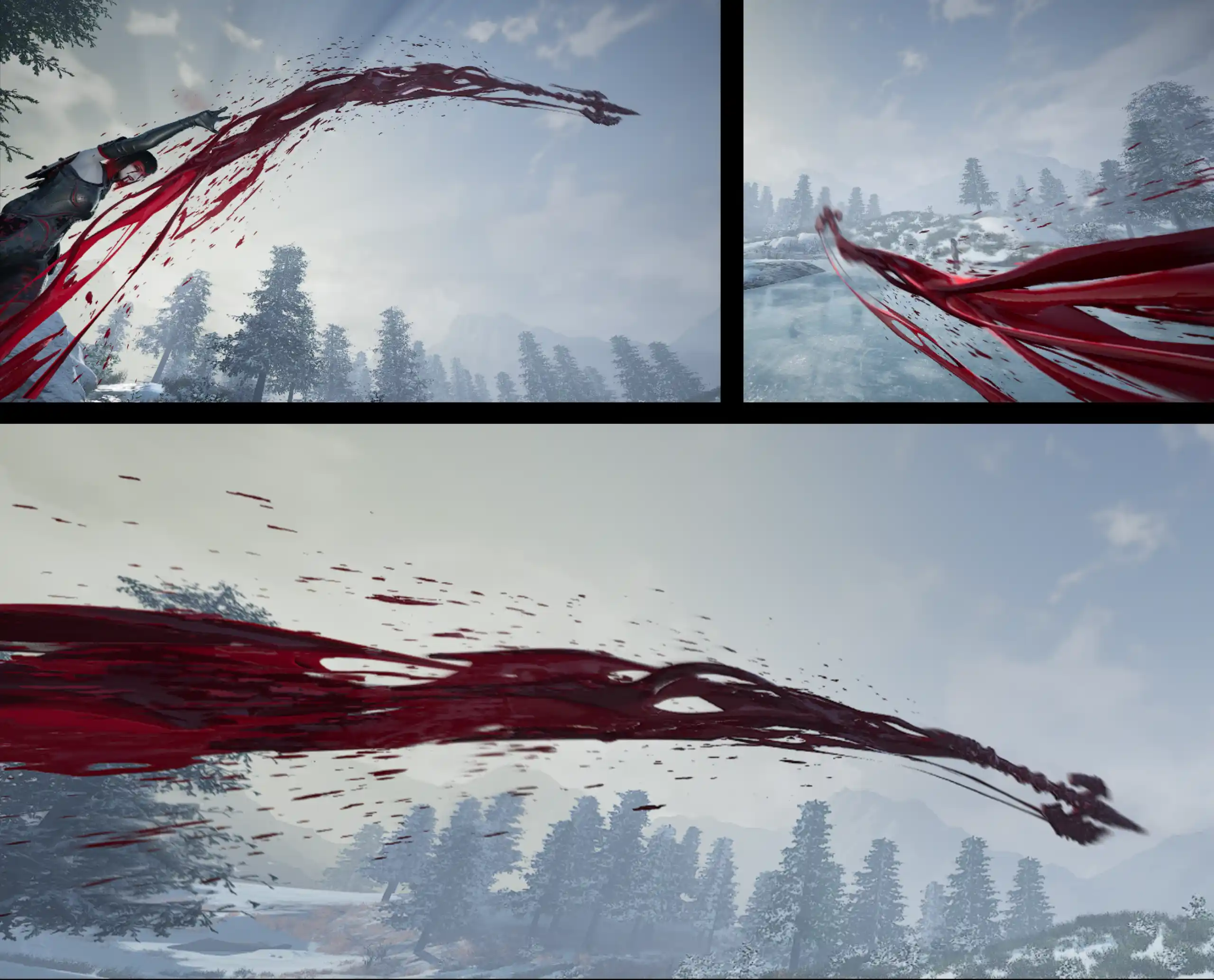

Blood Trail

In the Blood Trail, I use three main textures:

１．Alpha, Thickness and Erosion
２．Normals
３．Second set of Normals that are blended in as the alpha erosion happens.

They are tileable textures. Similar to the trick I used before to maximize texture space and variety, each texture contains two trails.

Impact

I used the same techniques to make the Impact effect. I also reused most of the textures. Only this one introduces a mesh flipbook. I wanted to add more three-dimensionality to the effect, and I chose it over a VAT to avoid introducing more large textures.

The mesh flipbook has velocities written into the vertex color, which I used to interpolate positions and achieve a slow-motion effect. For the 2D flipbook, I used a motion vectors texture.
